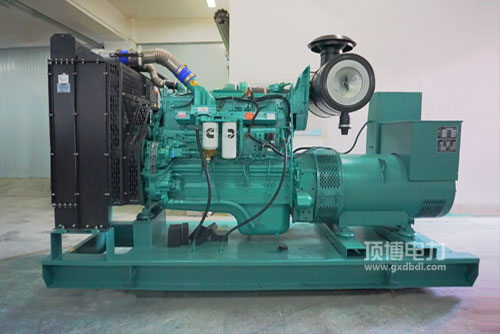

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用发起机然油成本性好: 高级的然油保持装置，才有的STC、ESTC 分等级保持装置，特别的设汁的火塞顶部自燃室，高压低压喷洒然油，积极的做雾化，自燃积极的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用起倾向瞬态耐腐蚀性比较好: 完全的起倾向整体化的设计，协调一致康明斯个性的EFC体统，把控准确值高，出错时间间隔快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用启动因升最大功率高: 建筑体设置紧身.性能布局合理可行，正常运行保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50满足需要我国非路段3.分阶段及南美Tier2. Tier 3排污法律法规要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件都有机会得到性好， 打火机运转及维修清洗保养清洗保养快捷，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率区间 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L性能面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯生产发电用启驱动力的优势特点：体型小， 缩减变高， 喷淋喷嘴气采暖器，有利于无法，可移动车载电子电源开关的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机应用	通常用公率(kW)Prime Power	紧急最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
